Product Description What NVR WILL YOU GET
| Video/Audio input | IP video input | 8-ch |
| Up to 8 MP resolution | ||
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Network | Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps | |
| Video/Audio output | Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Decoding | Decoding format | H.264/H.264+/MPEG4 |
| Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
|
| Synchronous playback | 8-ch | |
| Capability | 1-ch @ 8 MP / 4-ch @ 1080p | |
| Network management | Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | SATA | 1 SATA interface |
| Capacity | Up to 6TB capacity for each disk | |
| External interface | Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 | |
| POE Interface | Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 75W | |
| Standard | IEEE 802.3 af/at | |
| General | Power supply | 48 VDC |
| Power | ≤ 90 W | |
| Consumption(without hard disk) | ≤ 10 W (without enabling PoE) | |
| Working temperature | -10 to +55º C (+14 to +131º F) | |
| Working humidity | 10 to 90 % | |
| Chassis | 1U chassis | |
| Dimensions(W × D × H) | 315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) | |
| Weight(without hard disk) | ≤ 1 kg (2.2 lb) |

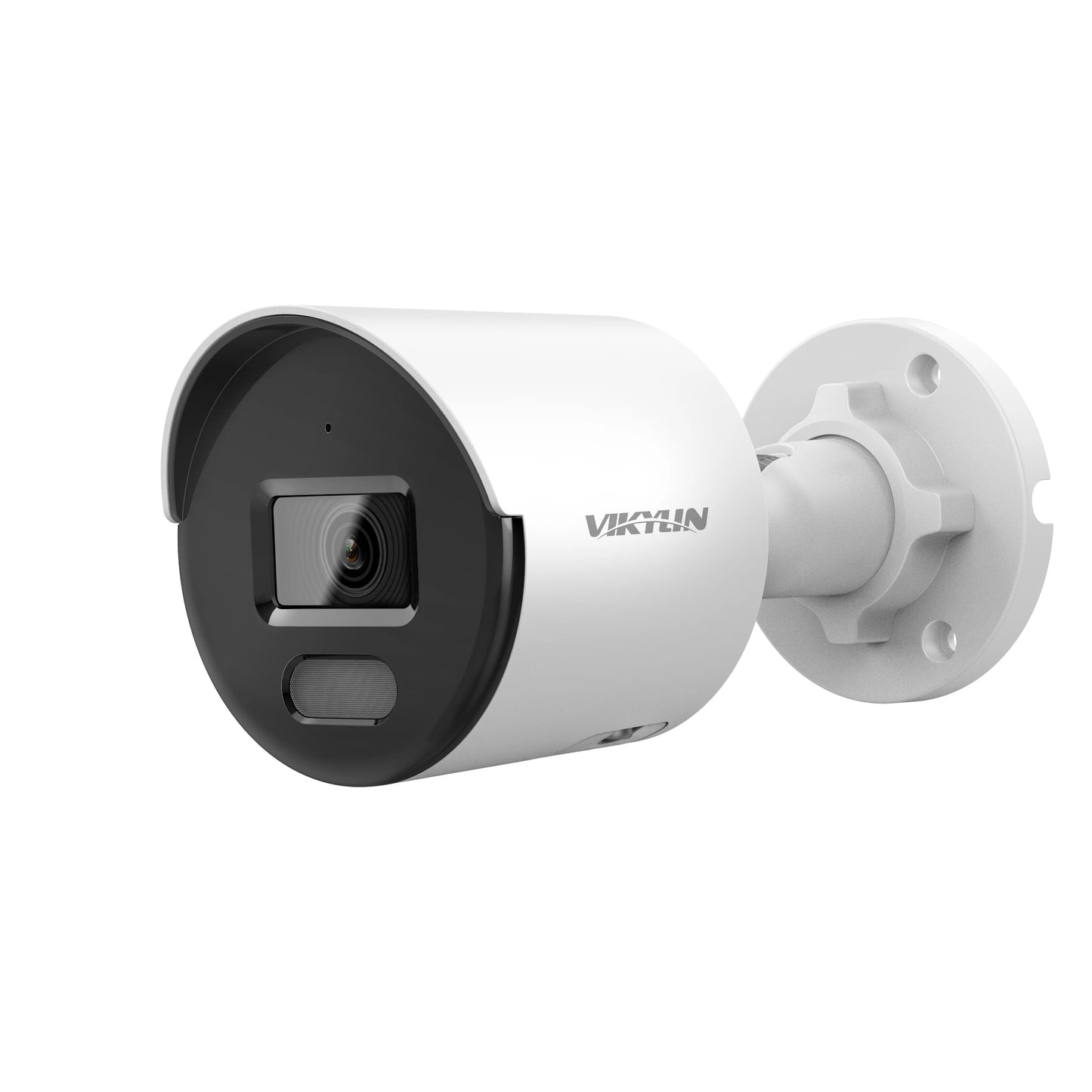

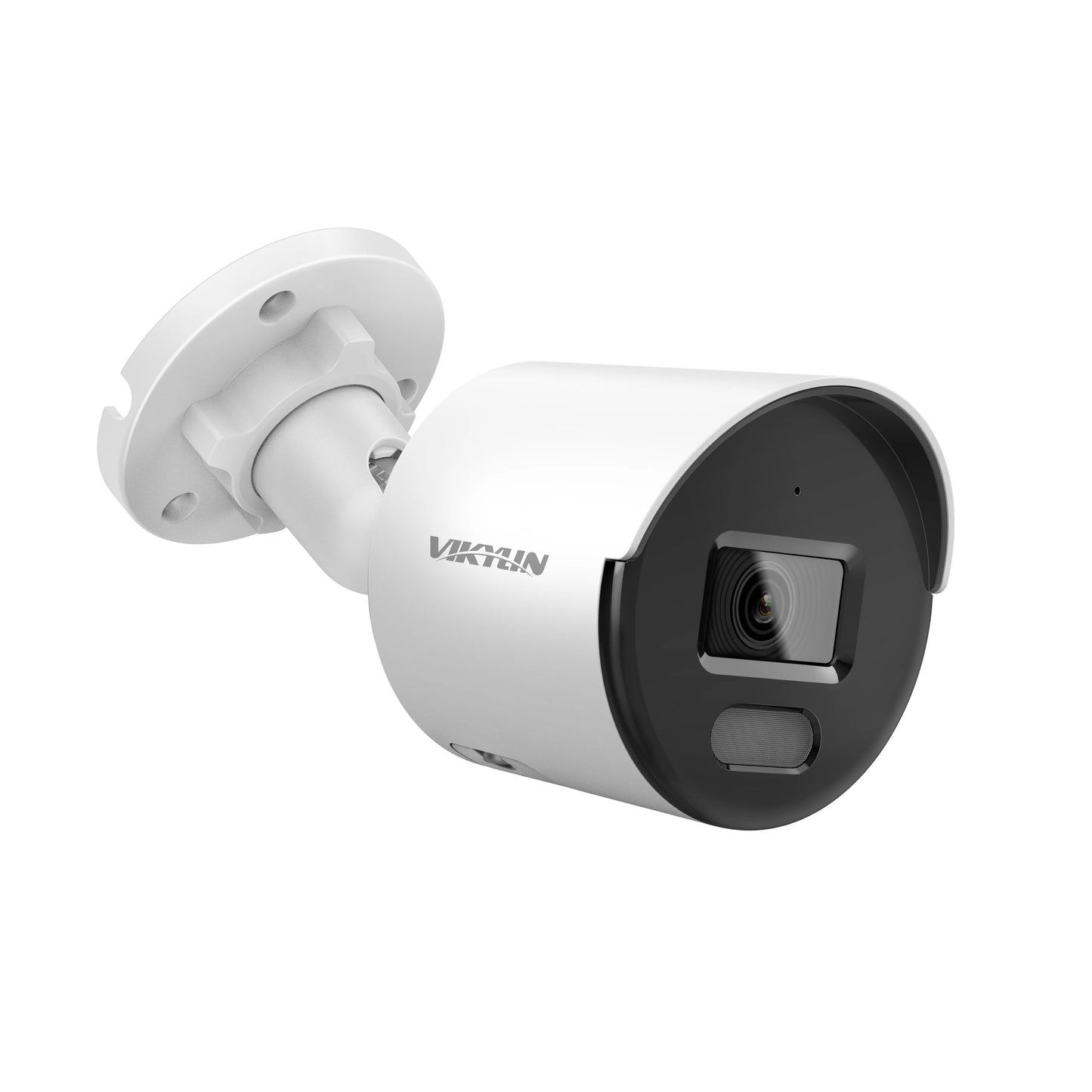

4MP Colorvu Camera Spec
| Image Sensor | 1/3″ Progressive Scan CMOS full color vikylin cube turet indoor outdoor ip67 mic sd slot 5MP motion detection 8ch poe nvr security camera cctv system |
| Min. Illumination | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9° 4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F1.0 |
| DORI | |
| DORI | 2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m 4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m |
| Illuminator | |
| Smart Supplement Light | Yes |
| White Light Range | Up to 30 m |
| Video | |
| Max. Resolution | 2560 × 1920 |
| Main Stream | 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Compression | -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | -UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -UF: 8 kHz/16 kHz |
| Environment Noise Filtering | -UF: Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | -UF: Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | -UF: Yes |
| Hardware Reset | -UF: Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| General | |
| Linkage Method | Upload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture |
| Camera Material | Metal & Plastic |
| Camera Dimension | Ø109.9 mm × 103.6 mm (Ø4.33″ × 4.08″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Camera Weight | Approx. 380 g (0.84 lb.) |
| With Package Weight | Approx. 600 g (1.32 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Web Client Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.122 |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
