Description
H.264 720p 4ch Wireless CCTV With 10.1 inch LCD Screen Outdoor Waterproof P2P Security Camera System NVR Kit
Product Description
Feather:

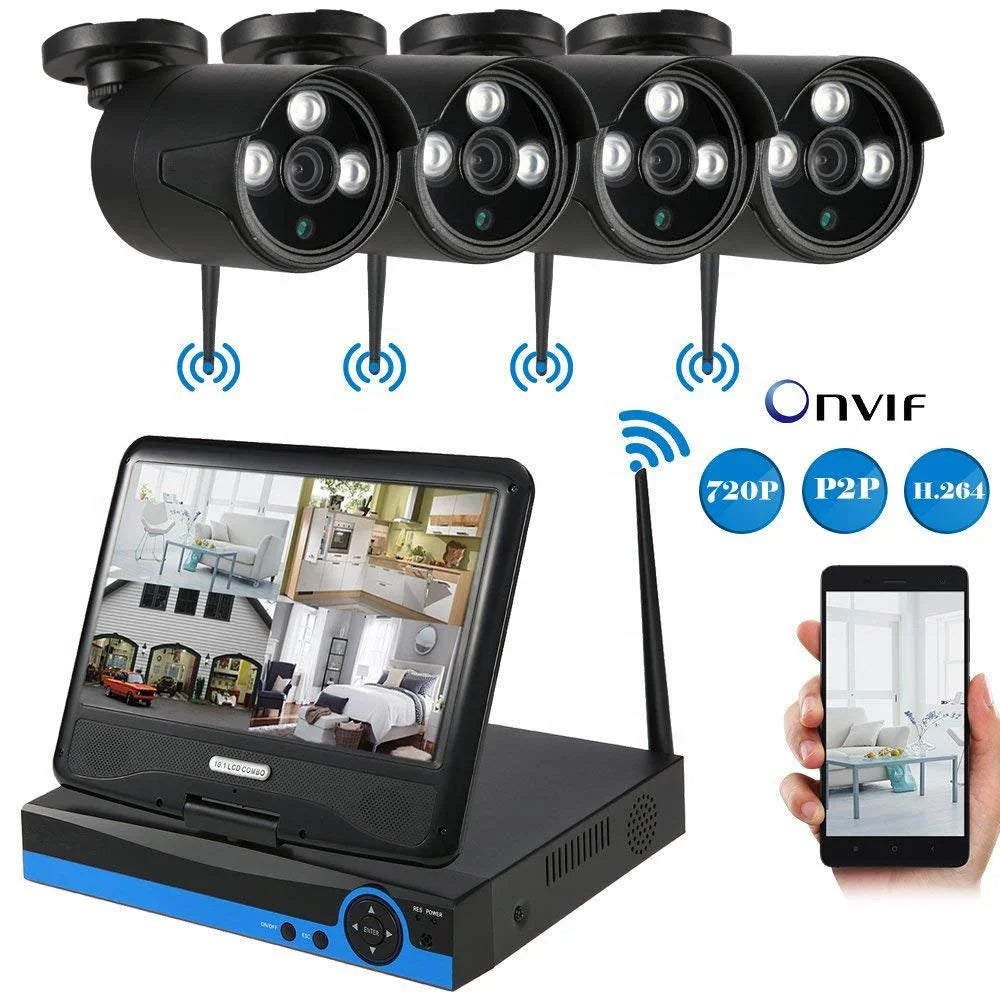

* This is wireless NVR kit with 10.1 inch LCD monitor and 4pcs 720P/960P/1080P WIFI IP Camera.
* All the cameras with antennas, which make more stable transmission.
* Dual-stream encoding. Main stream for local view, presenting high quality image; Sub stream for online remote view, overcome limitation of bandwidth.
Specification of DVR & CAM
1.4CH 720P/1080P LCD WiFi NVR
WiFi 720P/960P/1080P CAM
2.Full Metal housing with IP66 water proof.
3.3pcs IR LED lamps, 30M IR distance.
4.5dB performance antenna,DC12V 2A power supply.
5.2USB, VGA, HDMI output, support 1 SATA HDD(8TB)
Accessories:
* 4CH 720P/1080P LCD WiFi NVR (not HDD) X 1
* WiFi 720P/960P/1080P Cameras X 4
* 1m Network line X1
* DC 12V 2A Power adapter X1
* DC 12V 1A Power adapter X4
* USB Mouse X 1
* User Manual X1
* Screw bag X4
Specification
| NVR Specifications | |
| Main processor | Hi 3520D |
| Power Supply | DC 12V/2A |
| Operating System | Embedded Linux |
| Menu Display | 1/4 screen |
| Record Resolution | 1280*720 |
| Record Mode | Manual/Scheduled/Motion |
| Compression Format | 720P 960P H.264;1080P H.265 |
| Sync-playback | 4 channel |
| NVR Resolution | 4CH 720P/1080P LCD WiFi NVR |
| HDD Support | 3.5inch SATA port, Max 8TB capacity(HDD not included) |
| WiFi Protocol | 802.11b/g/n, dual WiFi antennas |
| Connection Distance | 100m (open), 30m(obstacled) |
| Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Power Consumption | <=5W(without HDD) |
| APP OS | support Android/iOS phone or pad |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation,USB backup |
| Protocol | HTTP, SMTP, PPPOE, FTP, UPnP, ON VIF |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner |
| NVR Size: 28*22.5*5.5cm | NVR Weight: 1432g/3.1lb |
| Camera Specifications | |
| Power Supply | DC 12V/1A |
| Processor + sensor | Hi3518EV200+SC2235 1/3″ Progressive Scan Sensor |
| Pixels | 1.0MP megapixels |
| Resolution | 1280*720 |
| Focus | 3.6mm fixed Lens |
| Infrared lamp | 3pcs IR LEDs; auto switch |
| Minimum illumination | 0.1Lux (IR on);0.01Lux(B/W) |
| IR Distance | 30 meters |
| Waterproof Grade | IP66 |
| Material | Aluminum alloy |
| Camera Size: Approx | 6.5*6.5*18.5cm(L*W*H) |
| Camera Weight | Approx. 349g/0.7lb |
Our Advantages
WHY CHOOSE US
FACTORY
As a professional Manufacturer of surveillance equipment, we are a direct factory store with shops in Shenzhen Pacific Market and over ten years experience in the security field.
Technology&Quality
We have competent R&D Group and expe-rienced engineers,SMT assembly machine ,using original chip ,produce high quality products.
ODM&OEM
OEM service to meet all your need.Packaging or LOGO customization.Price is competitive and negotiable, large quantity can get bigger discount.
SERVICE
Conduct strict QC inspection before delivery and also had a mature system of production, sale, delivery and after-sales service.we are provide two years of warranty service without human damage case.
