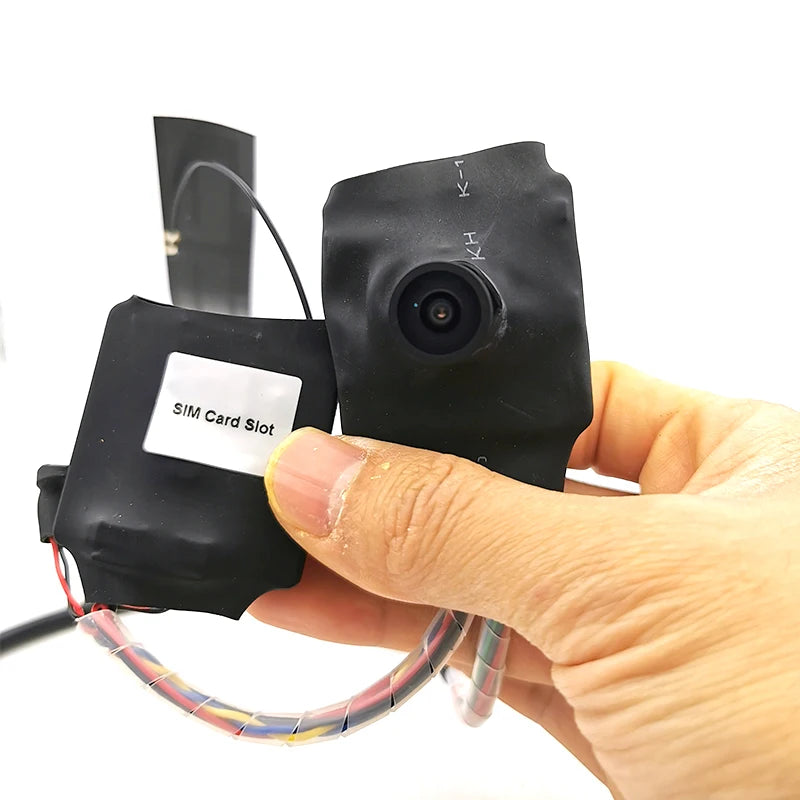

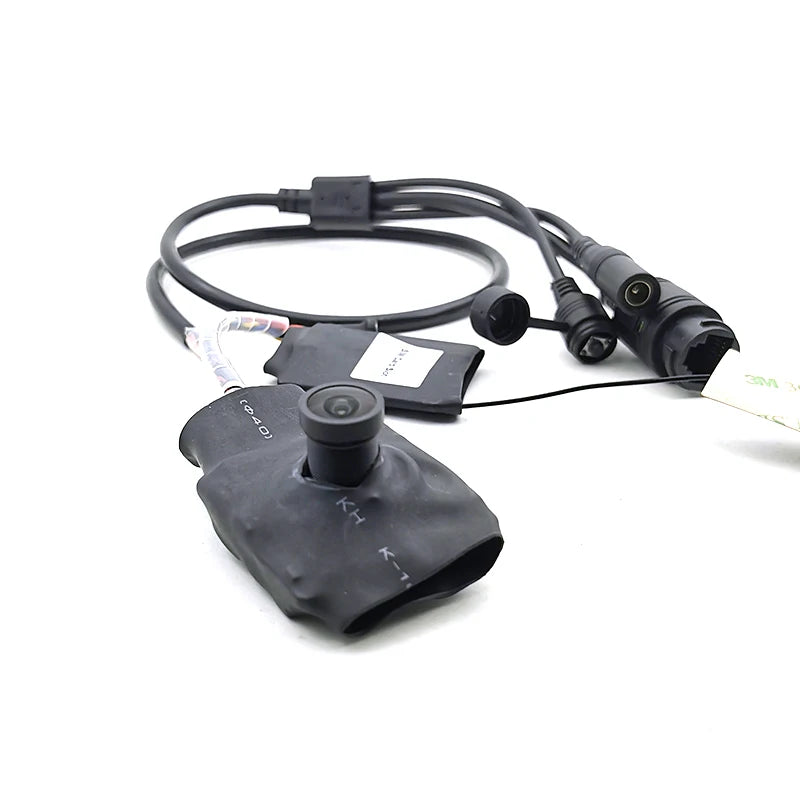

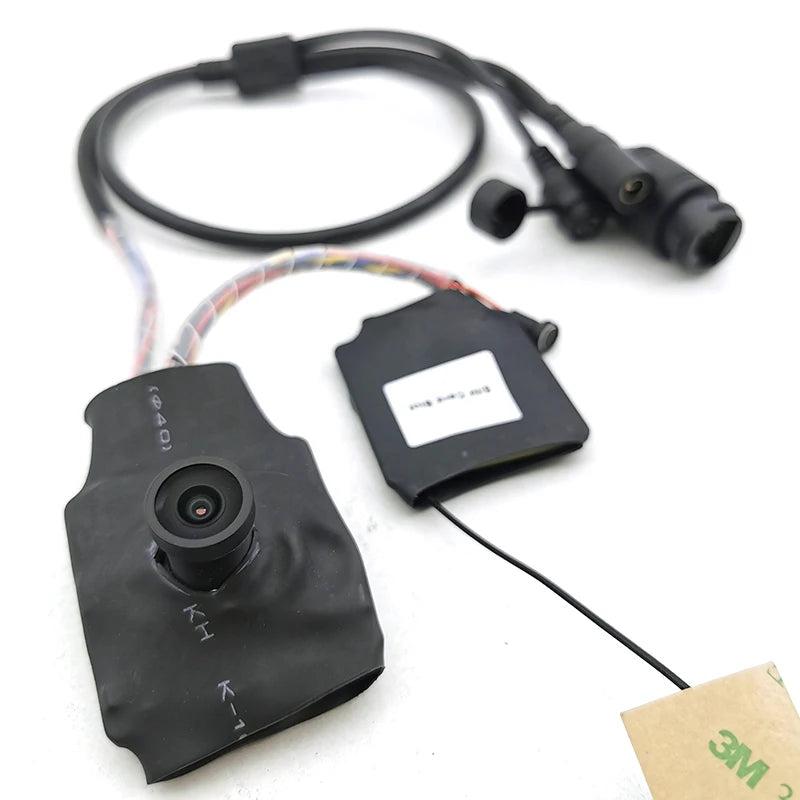

Wide Angle Audio 2MP 5MP 1920P Mini 3G 4G Security Ip Camera With SIM Card/SD Card Slot SPIED Module DIY 4G Camera P2P On Vif
IF YOU NEED battery ,pls click below:
Attenation:
NOTICE:
Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks ! if you have other requirement ,welcome contact with us free !
|
Please read carefully before ordering |
||||||||||||||||||||||||||||||||||||||||||
|
NOTICE: Note:Before purchasing, please know that 4G version supports 4G network in Europe 5MP 4G Versio – 4G support! also support lan cable connection with router Note: LTE Cat 4,This module supports 4G networks in the following countries. Some customers have already used it
|
ABCDEFGH lens selection, if you need ,welcome to contact with our team custom made for your requirement ! Warm Tips:
4G Version Works both 4G and lan cable RJ45 Important Warning: If you want to use this 3G 4G IP Camera,
You MUST check your SIM card frequency range MUST be in below listed range.
We will not agree any dispute for your own reason for your wrong order. 3G standard: WCDMA
Frequency range: B1(2100MHz), B8(900MHz) 4G standard: FDD-LTE
Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
–You MUST check your SIM card frequency range must be in below listed range.
Related instructionsThree operating modes. Wired, WiFi ,3G/4G.
In the place where the camera is installed, there is no network or WIFI signal. But have SIM mobile signals.
You can install a SIM card to the camera and connect the Internet by your SIM card
Tips: When using 3G/4G. Do not connect the network cable at the same time . Avoid IP assignment conflicts.NO need to set up wifi signalIn 3G/4G mode. The camera does not support the local PC client (unless the PC is connected to the 3G/4G signal MIFI-XX).In 3G/4G mode. Camera does not support cloud FTP storage How to quickly set up 3G/4GFirst of all , Download APP « CamHi » from the iPhone App Store or Google Play Store. Or scan the QR code If you choose the camera has 3G/4G. Then when the camera leaves the factory. The default connection to the 3G/4G module (signal MIFI-XX) has been set.
Note:If you use the reset button. Then you need to re-bind the camera to MIFI-xx
You only need a few simple steps.
Insert the SIM card into the camera. Connect the power adapter , wait 10-20s, camera will be ready.
Then open your phone WLAN setting , you will find « MIFI-XXX » and select to connect, the default password is 1234567890 When your phone is connected to MIFI-XX. Then open the app « camhi ». Select « Add Camera. »
Because your phone is connected to MIFI-XX. So you can choose « Search Camera from LAN ». Or directly scan the QR code of the camera.
Then you can see your camera online. You can control the camera and watch videos from your phone. NOTE:If view the 3G/4G camera is offline, please check the SIM card”.
Use the mobile phone or PC to connect the WIFI “MIFI_3F41”,the WIFI password is “1234567890”, you can find the WIFI when the
camera starts working. Access “192.168.100.1” through the browser, the page password
is “admin”, you can check the SIM card information on this page. If your camera display is offline, please note the following:
1.Damaged card or wrong installation direction when prompted «
No SIM Card or SIM Card invalid! « , as shown below: 2.Frequency not supported or SIM card arrears when prompted « No Service » or « Limited Service », as shown below 1):
3.Make sure 3G/4G signal strength is enough, as shown below 2):
Features:
Support 3G/4G, support RJ45 Lan cable connection mode;
Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide Android & IOS APP and professional CMS PC client software;
Specificaitons: Models: GS-HX4GCBA5M /GS-HX4GCBMA
|
Camera |
Operating system |
Embedded Linux OS |
|
Processor |
HI3516EV200 |
|
|
Sensor |
||
|
1920P :1/2.8″ Sony imx335 CMOS 2MP:HI3516E+1/2.7 |
||
|
Lens interface type |
M12 |
|
|
Lens |
3.6mm or 3.7mm Lens default ,other lens optional |
|
|
View angle |
90degree |
|
|
Min.illumination |
0.001lux/0lux (IR on) |
|
|
Day&Night mode |
/ |
|
|
Night vision distance |
/ |
|
|
Video |
Video compression |
H.265 H.264 |
|
Video streaming |
5MP HD three stream |
|
|
Video resolution |
||
|
5MP Main stream: 2560×1920@15fps, 2560×1440@15fps 3MPMain stream: 2560×1440@15fps Sub stream: 2MP:Main stream: 1920*1080P@20fps, 1280×720@25fps Sub stream: 640×480/640×352@25fps, 320×240/320×176@25fps |
||
|
Video code rate |
32~6144Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
1MP&1.3MP:25fps,2MP:20fps |
|
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
|
|
Image enhancement |
Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction |
|
|
Function |
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm mobile phone message push |
|
|
Privacy mask |
maximum support 4 users to simultaneously browse |
|
|
OSD |
support camera name, date and time information superimposed |
|
|
User management |
Supports user and rights management |
|
|
Simultaneous viewers |
Maximum support 4 users to simultaneously browse |
|
|
Network protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc |
|
|
Connection protocol |
N/A |
|
|
4G |
4G standard |
FDD-LTE |
|
Frequency range |
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) |
|
|
Transmission rate |
Upload max:50Mbps, download max: 150Mbps |
|
|
Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
|
3G |
3G standard |
WCDMA |
|
Frequency range |
B1(2100MHz), B8(900MHz) |
|
|
Transmission rate |
Upload max:5.76Mbps, download max: 21Mbps |
|
|
Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
|
Interface |
Power interface |
5.5mm power interface |
|
Ethernet |
RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
TF card Slot |
maximum support 128G TF card, can set the automatic capture and timer recording |
|
|
Reset button |
Support |
|
|
General specification |
Power supply |
DC 12V 1A |
|
power |
Day:3W, Night:8W |
|
|
Operating temperature |
-20 to +60 degree |
|
|
Operating humidity |
10% to 95%(non-condensing) |
|
|
Waterproof level |
IP55 |
|
|
Material |
/ |
|
|
Installation |
/ |
|
|
Product size(W×D×H)(mm) |
/ |
|
|
Product weight(kg) |
0.38 |
|
|
Accessories |
1*camera 1*Bag*Screws,, 1*Manual |
|
|
Package Size(W×D×H)(mm) |
200*130*95mm |
|
|
Package Weight(kg) |
0.65 |
Package Include:
1 x camera
1 x User manual Related Products:Note:Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !
If the buyer want other sizelens please ‘Leave Message to Seller’ to notify us when bidding.
To Customers :
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
WEB interface:
Simple instruation:
